MCONE COMPACT GAMING CASE

ADVANCED RGB compact case for high performance Gaming configurations in MicroATX & Mini-ITX form factors. Outstanding cooling thanks to its 2 fixed FRGB fans, front panel with MESH air intake, dual chamber PSU design and maximum support for liquid cooling.

See
MCONE COMPACT GAMING CASE

Compact gaming to the next level

SPECTACULAR GAMING DESIGN

SPECTACULAR GAMING DESIGN

Take the leap to your dream PC with a cutting-edge gaming aesthetic: side window, 2x FRGB fans, top-mounted controls and connections, XL riser feet.

MAXIMUM COOLING CAPACITY

MAXIMUM COOLING CAPACITY

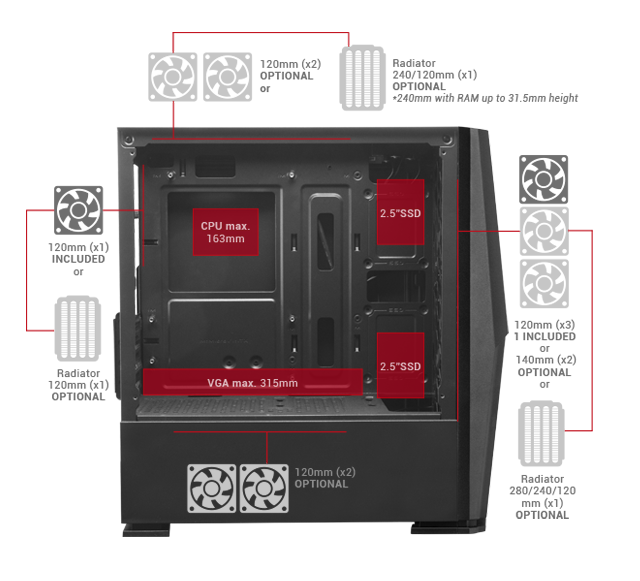

Constant airflow is the key to extending the life of your components and keeping your system running at peak performance. That's why the MCONE features a pre-installed airflow system with a front and rear fan, with the possibility to install up to 8 x 120mm fans or 2 x 140mm + 5 x 120mm fans, a front and top grill and a dual chamber design that separates the power supply from the rest of the equipment. In addition, it offers full liquid cooling support with space for 280/240/120mm front, 240/120mm top and 120mm rear radiators.

MAXIMUM INTERNAL CAPACITY

MAXIMUM INTERNAL CAPACITY

The MCONE offers ample internal space for the installation of high-performance components, offering support for microATX and mini-ITX motherboards, up to 3 x 2.5" SSDs and 1 x 3.5" HDD, all with fully efficient internal cable management.

OPTIMIZED PERFORMANCE

OPTIMIZED PERFORMANCE

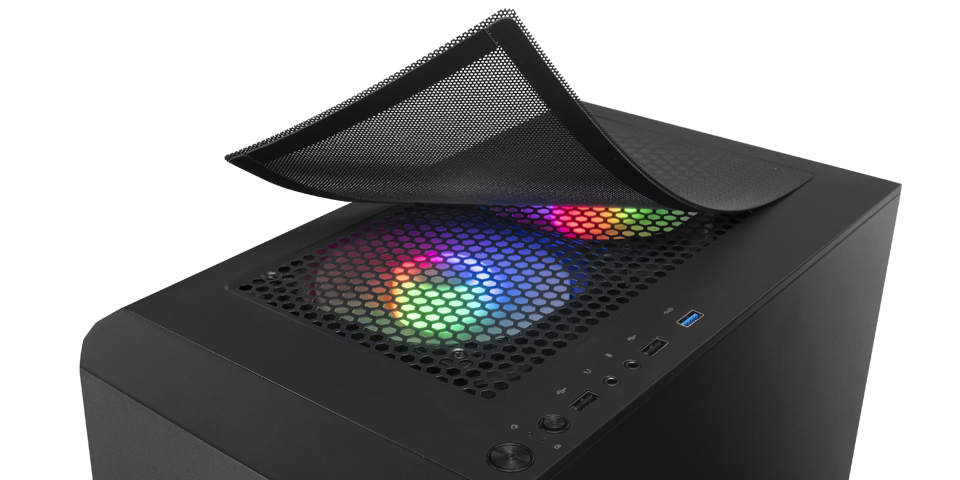

The MCONE's features offer the best performance for your computer, making it easy to clean and boosting cooling to the maximum. It features two removable dust filters, XL feet for perfect stability, dual PSU chambers and full support for up to 8 fans.

ADVANCED RGB GAMING LIGHTING

ADVANCED RGB GAMING LIGHTING

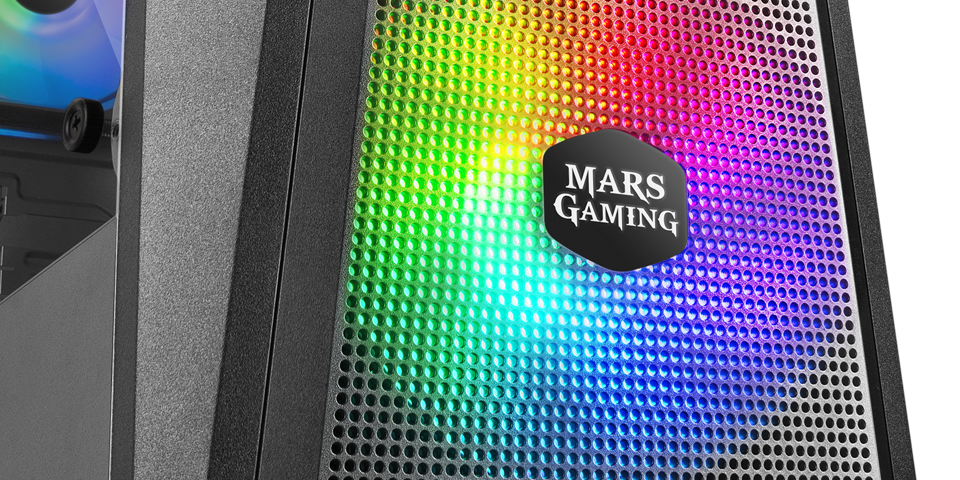

The MCONE's cooling features a Fixed RGB lighting system that provides your setup with a constant flow of color, elevating the aesthetics of your rig to the max. The front with avant-garde shapes and Mesh air intake further enhances its look, combining cooling and lighting like never before.

RGB Fixed

Technical specifications -

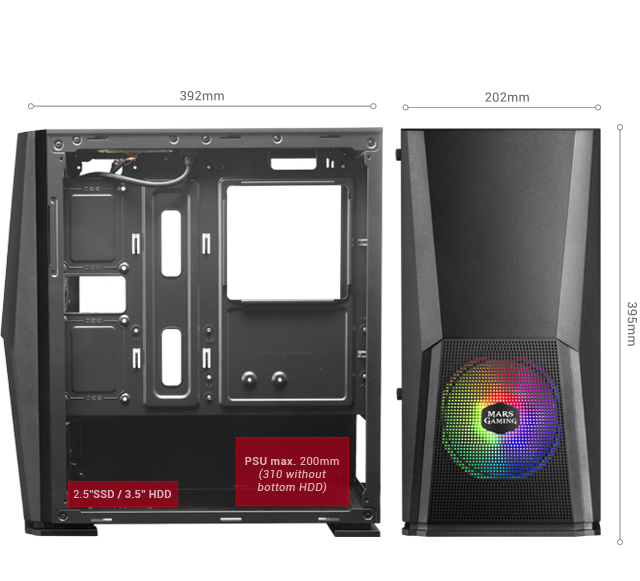

Dimensions
392x395x202mm
Weight
2950g
Window
Full acrylic side window
Lighting
Fixed RGB lighting
Extras
Wire management system
Motherboards compatibility
MicroATX / Mini-ITX
Dust filters
1x top magentic filter 1x bottom filter (detachables)
Ports
USB3.0 x1 / USB2.0 x2 / HD Audio + Mic
Internal drive bay
3x 2.5" SSD / 1x 3.5" HDD
VGA max. length
315mm
VGA max. width
145mm
PSU max. length
200mm - 310mm without inferior HDD
CPU cooler max. height
163mm
Expansion slots
4
Supports Liquid Cooling
280mm or 240mm or 120mm front / 240mm (with RAM memory up to 31,5mm height) or 120mm top / 120mm rear
Fans capacity
Up to 8x 120mm or 2x 140mm + 5x 120mm
Included components
1x front 120mm FRGB + 1x rear 120mm FRGB
Internal dimensions
Width-17.3 height-37.2 (floor to ceiling) Length 32.3

Box contents +

MCONE, Manual, Screw Set

Reviews MCONE

Do you want to do a review?

If you are a reviewer and you are interested in collaborating with us, send us your request!

Request review
MCONE COMPACT GAMING CASE

MCONE

  • 2 x 120mm Fixed RGB fans
  • Front panel with Mesh air intake
  • Full liquid cooling support
  • Dual chamber design
