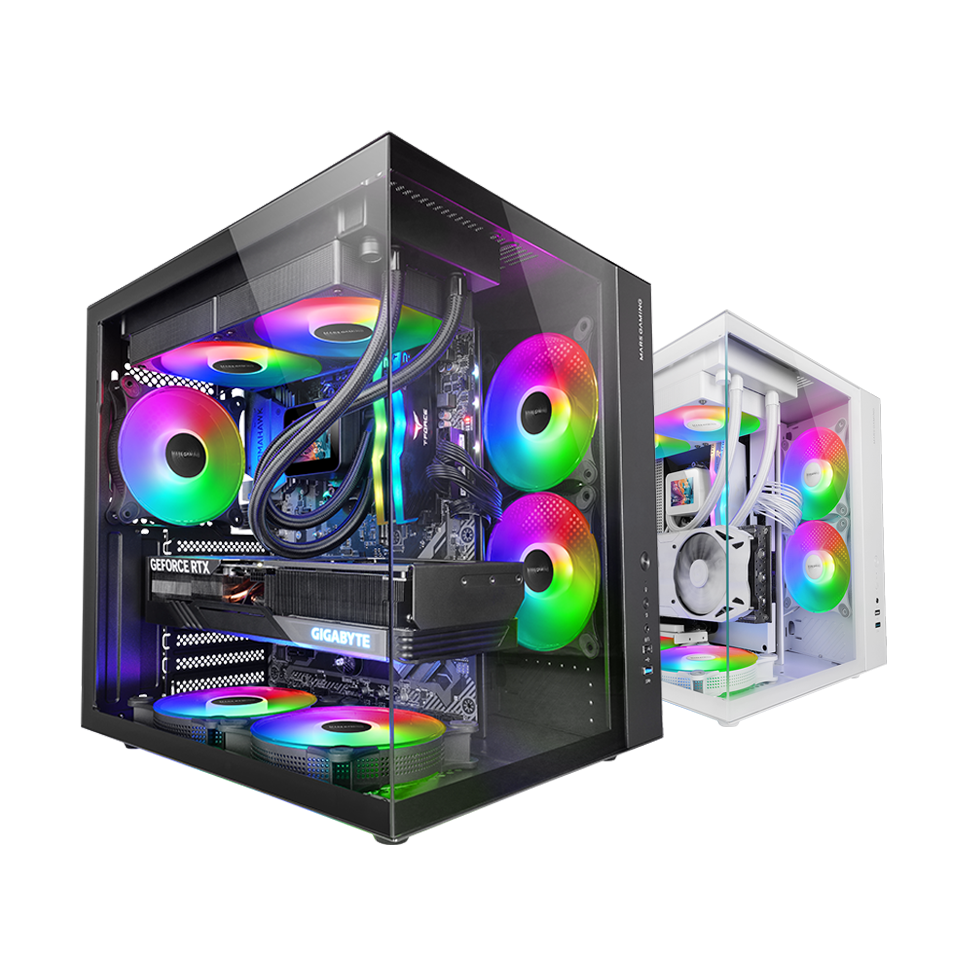

MCV-ONE Gaming Case

The MCV-ONE is a compact ATX case with impressive internal capacity, combining cutting-edge design, high thermal performance, and premium aesthetics to take your setup to the next level. Featuring dual seamless tempered glass panels, an integrated 120mm FRGB fan, dual-chamber structure, and support for liquid cooling up to 240mm, it offers everything you need to build a powerful and visually striking system in a compact format.

See
MCV-ONE Gaming Case

Bold Design. Pro Performance.

Panoramic Tempered Glass View

Panoramic Tempered Glass View

Show off your build from every angle with the MCV-ONE’s dual continuous tempered glass panels on the front and side. Its frameless design enhances lighting and internal components, making your rig the centerpiece of any gaming setup.

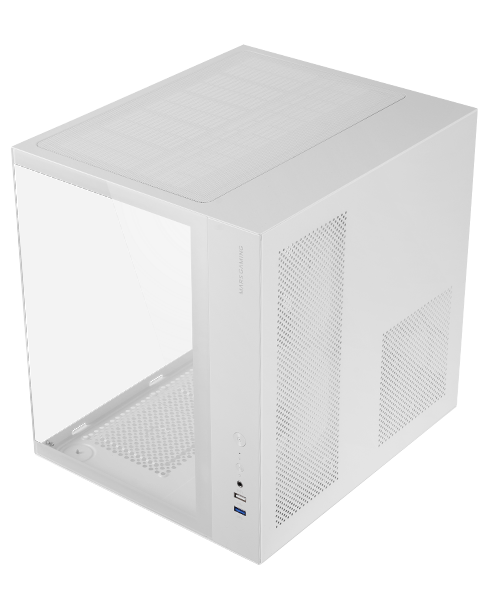

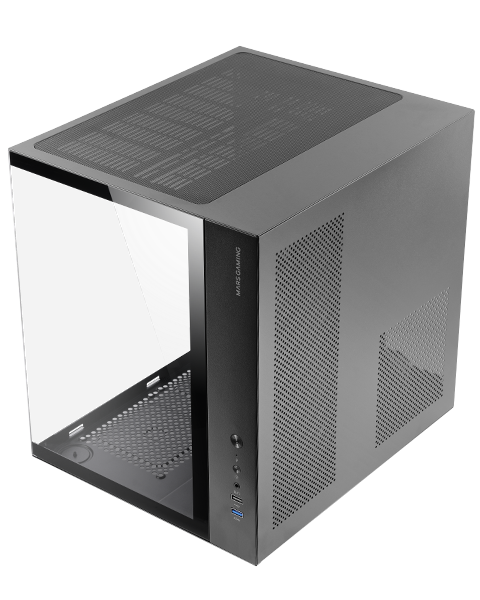

Available in two versions

White and black

Choose the one that best suits your setup

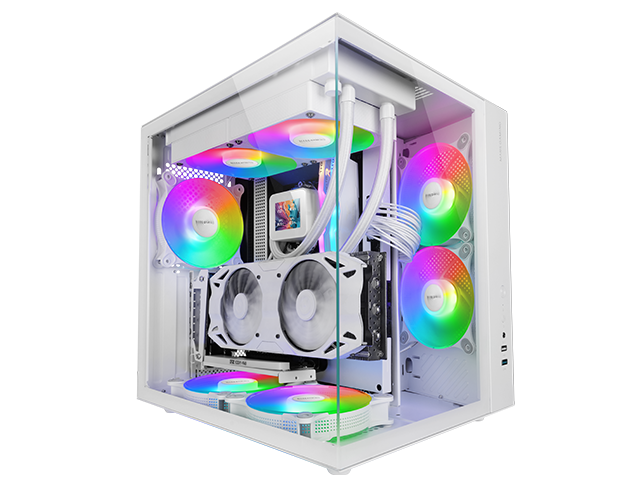

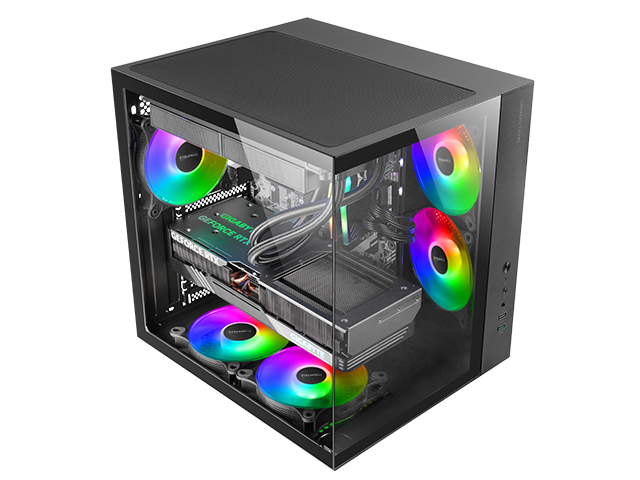

Superior Thermal Performance

Superior Thermal Performance

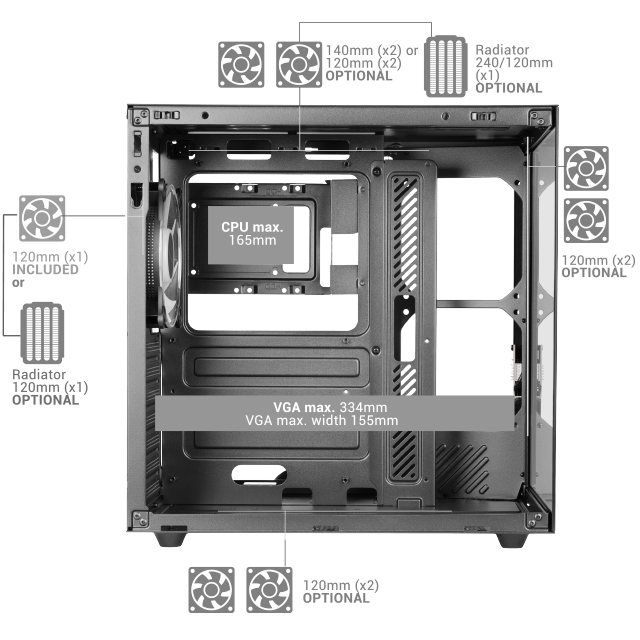

Keep your components cool with an advanced and stylish cooling system. The MCV-ONE comes equipped with a 120mm FRGB rear fan for consistent airflow and immersive RGB lighting. It supports liquid cooling up to 240mm*, CPU coolers up to 165mm in height, and allows for the installation of up to 7 fans—ensuring optimal ventilation and performance in any scenario.
*Note: Max dimensions 305x120x52mm

RGB Fixed

Optimized Dual-Chamber Layout

Optimized Dual-Chamber Layout

Designed with a dual-chamber internal structure, the MCV-ONE separates the PSU and storage drives from the main components. This layout enhances airflow, improves cable management, and ensures a clean, professional-looking build.

Compact and Functional Design

Compact and Functional Design

Engineered to save space without limiting your setup, the MCV-ONE combines a compact form factor with impressive internal capacity. It supports ATX, microATX, and mini-ITX motherboards, and fits graphics cards up to 334 mm in length. An included removable adapter piece creates extra clearance when installing mini-ITX boards, maximizing internal space. The top magnetic dust filter ensures easy maintenance and keeps your setup clean and running at peak performance.

Technical specifications -

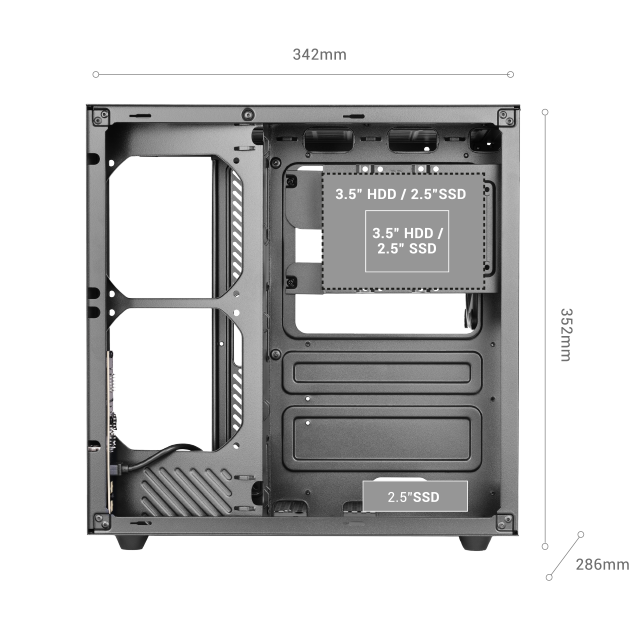

Dimensions
342x286x352mm
Weight
4.26Kg
Size
Mid-tower
Window
Front and side temperes glass panels
Lighting
Fixed RGB rear Fan
Extras
Removable bracket for ATX/MicroATX motherboards, Dual-chamber design and internal cable management system
Motherboards compatibility
ATX / MicroATX / Mini-ITX
Dust filters
1x top magnetic filter
Card Reader
No
Ports
USB3.0 x1 / USB2.0 x1 / HD Audio + Mic
Power Supply type
ATX
Internal drive bay
2x 3.5" HDD + 1x 2,5" SSD / 1x 3.5" HDD + 2x 2.5" SSD
VGA max. length
334mm
VGA max. width
155mm
CPU cooler max. height
165mm
Expansion slots
7
Supports Liquid Cooling
240mm, 120mm top / 120mm rear
Fans capacity
Up to 7x 120mm
Included components
1x rear 120mm fan
Internal dimensions
Weidth-28,5 Height-33,3 (floor to ceiling) Length 33,6cm
Power connectors
MOLEX (ventilador)
Fan speed
1200RPM
Maximum liquid cooling size
305x120x52mm (240mm)
