MCPU117 heatsink

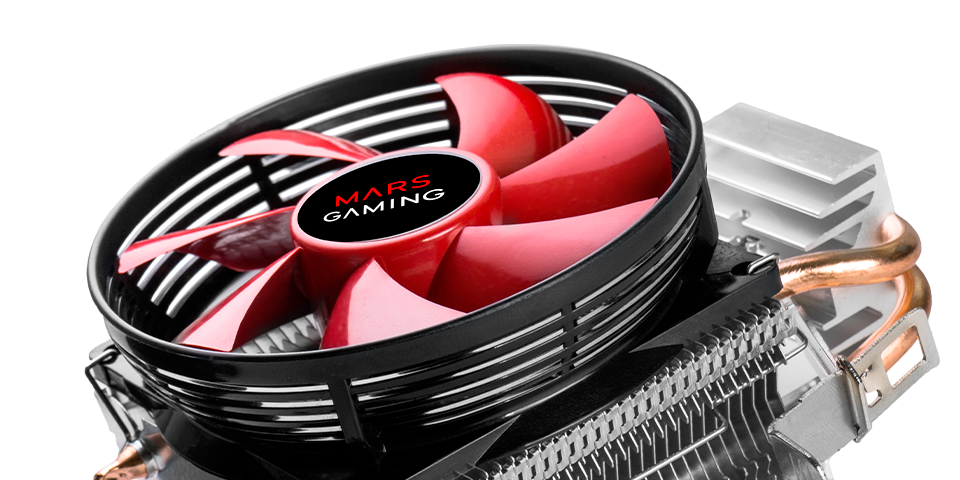

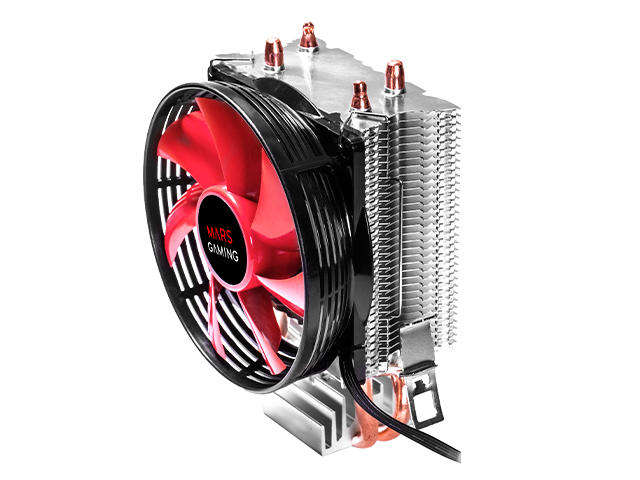

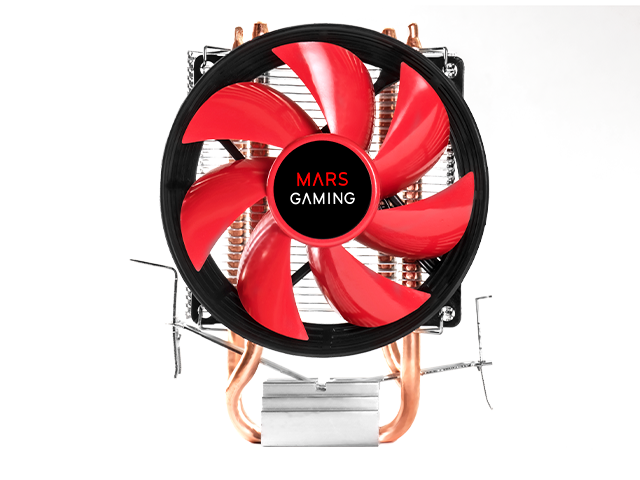

The MCPU117 offers universal support and a low profile design. Compact and with great compatibility to work with a wide range of processors. Get the maximum power thanks to its ultra efficient heatpipe with direct-core-contact technology.

Buy
MCPU117 heatsink

Compact and compatible with any CPU!

Suitable for small spaces

Suitable for small spaces

The ultra slim profile, with a 90mm fan, makes the MCPU117 the perfect heatsink for small boxes. Unlimited cooling for limited spaces.

Up to 120W TDP

Up to 120W TDP

Capable of supporting CPUs up to 120W of TDP, its ultra efficient heatpipe with direct-core-contact technology, allows you to enjoy your games to the fullest. In addition, the innovative 4-pin PWM technology will guarantee absolute control of the fan speed.

AM4 support

AM4 support

The wide compatibility offered by the MCPU117 allows it to be placed on a large number of motherboards, including those of the new AM4 socket that, with the arrival of the AMD Ryzen processors, have become popular.

Technical specifications -

Dimensions
117x61.5x125mm
Weight
310g
Lighting
No
Color
Red and black
Material
D.C.C. base - Aluminum fin
Extras
N/A
TDP
120W
Socket
INTEL LGA 775 / 1150 / 1151 / 1155 / 1156 y AMD FM1 / AM2 / AM3 / AM3+ / AM4 / FM2
Fan
90x25mm
Anti-vibration
No
Airflow
18.5-23.6 CFM
Sound level
8-20 dBA
Speed
800-2000RPM
Max. Power
1.8W
Lifespan
60.000 hours
Bearings
Hydraulic
Connection
PWM- 4pin
Number of heat pipes
2
Thermal paste
Yes
Voltage
12VDC
AC/DC
0.15A
